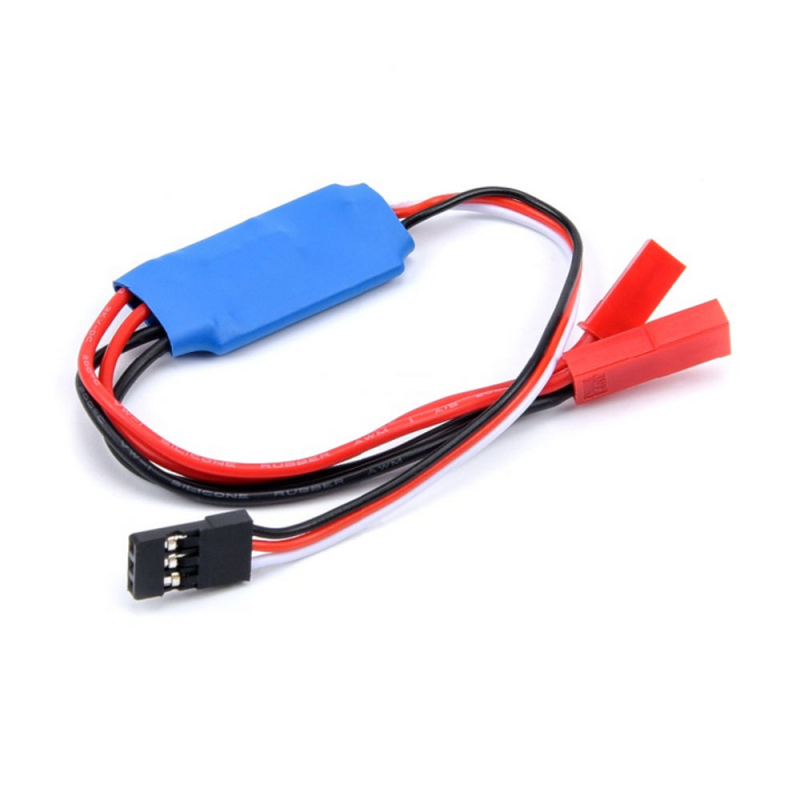

The 10A RC TX Controlled Relay Switch PWM Receiver Module is a compact electronic switch designed to control external devices directly from your RC transmitter. Using a PWM signal from an auxiliary channel on your receiver, this module allows you to easily turn ON or OFF devices such as LED lights, sprayers, buzzers, cameras, or other accessories on RC cars, drones, airplanes, boats, and robotics projects. The module uses a MOSFET electronic switch capable of handling up to 10A continuous DC current, ensuring efficient and reliable operation. It reads PWM signals from 400–2600µs, activating the switch when the signal exceeds 1800µs and turning it off when the signal drops below 1200µs.
Key Features
• PWM Controlled Relay Switch operated via RC transmitter channel
• 10A Continuous Load Current for reliable switching of accessories
• MOSFET Electronic Switch Design for efficient and stable performance
• Safe-Protection Mode prevents accidental activation during signal loss
• LED Status Indicator for operation monitoring
• Compact and Lightweight Module suitable for RC models and robotics
• Ideal for controlling LED lights, sprayers, cameras, buzzers, and auxiliary electronics
Working Modes
Normal Mode
• Accepts PWM pulse width 400–2600µs
• >1800µs → MOSFET switch ON
• <1200µs → MOSFET switch OFF
Safe Protection Mode
The safety mode activates in the following conditions:
1. If PWM signal is >1800µs at startup, the switch remains OFF and LED blinks until the signal returns to OFF position.
2. If the signal is lost for 500ms, the switch turns OFF automatically and the LED starts blinking.
LED Status Indication
• LED ON: Input pulse > 1800µs (Switch ON)
• LED OFF: Input pulse < 1200µs (Switch OFF)
• LED Fast Blink: Safe-protection mode active
Specifications
• Control Type: PWM Receiver Controlled Switch
• Switch Type: MOSFET
• Maximum Switching Current: 10A (Continuous)
• Input Voltage: 5 – 28V DC
• Receiver RX Lead Length: 100 mm
• Power Input/Output Lead Length: 100 mm each
Important Note
• Ensure the receiver is powered with 5V for proper operation.
• The transmitter should have at least 3 channels to control the switch.
Package Includes
• 1 × 10A RC TX Controlled Relay Switch PWM Receiver Module
