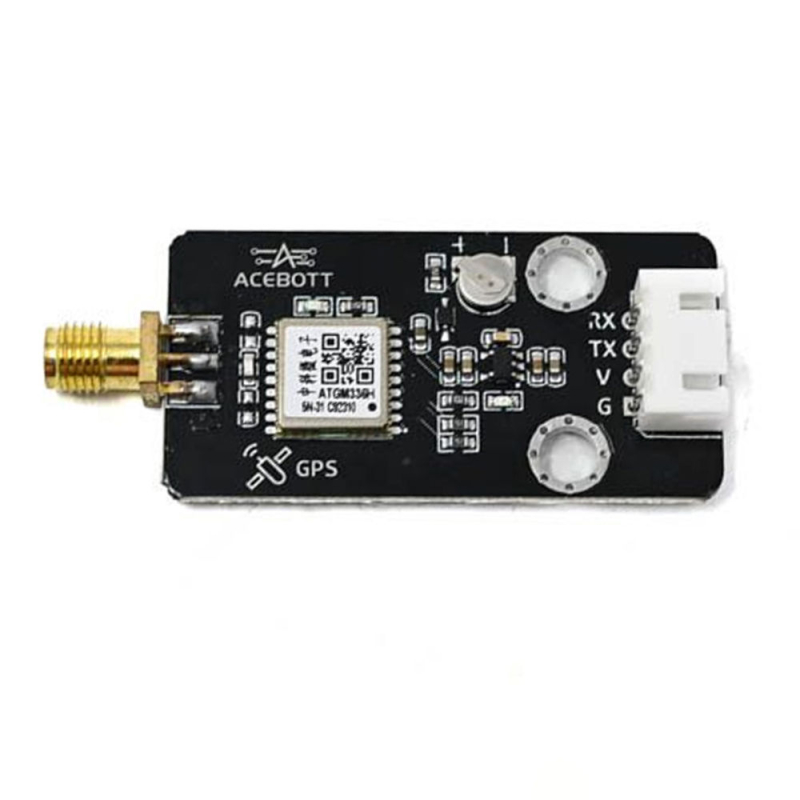

ACEBOTT GPS Expansion Pack For QD001

1966.9492966.10234% off

GST 18% Inclusive Price : 2321.000

Prices Inclusive of Taxes

Brand : ACEBOTT

Item Code : SS_MULDIYKITS_60

Availability : In stock

Delivery is available on or before Thursday,16 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :2

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

Want to request for bulk purchase?

GET BULK QUOTE NOW

The ACEBOTT GPS Expansion Pack for QD001 is a high-performance GNSS positioning and navigation expansion module designed for advanced robotics, IoT, and smart vehicle projects. Powered by the ATGM336H-5N GNSS module, this expansion pack supports multi-satellite positioning, allowing accurate and stable navigation in real-world environments. The module supports major global satellite systems including BDS (Beidou), GPS, GLONASS, GALILEO, QZSS, and SBAS augmentation systems, enabling multi-system joint positioning for improved accuracy and faster signal acquisition. With 32 tracking channels, high sensitivity, low power consumption, and compact design, this GPS expansion pack is ideal for robot cars, autonomous navigation, tracking projects, and STEM learning.
Key Features
• Multi-GNSS Support – Compatible with BDS, GPS, GLONASS, GALILEO, QZSS & SBAS
• High Positioning Accuracy – Up to 2.5 meters (CEP50)
• Fast First Fix – Initial positioning in as little as 32 seconds
• High Sensitivity Reception – Reliable signal tracking even in weak signal environments
• Low Power Consumption – <25mA at 3.3V for continuous operation
• 32 Channel GNSS Engine – Simultaneous multi-system positioning
• Built-in Antenna Protection – Antenna detection and short-circuit protection
• PPS Pulse Output – High-precision timing output for navigation applications
• Easy Integration – Designed for ACEBOTT QD001 expansion compatibility
Technical Specifications
• GNSS Module: ATGM336H-5N
• Supported Systems:
o BDS (Beidou)
o GPS
o GLONASS
o GALILEO
o QZSS
o SBAS (WAAS, EGNOS, GAGAN, MSAS)
• Number of Channels: 32
• Cold Start Sensitivity: -148 dBm
• Tracking Sensitivity: -162 dBm
• Positioning Accuracy: 2.5 m (CEP50)
• Time to First Fix: 32 seconds
• Operating Voltage: 3.3V
• Power Consumption: <25 mA @ 3.3V
• PPS Pulse Accuracy:
o RMS: 23 ns
o 99%: 50 ns
Package Includes
• 1 × ATGM336H-5N GNSS Module
• 1 × GPS Antenna
• 1 × 4-Pin Connection Cable
• 1 × Screw Pack
