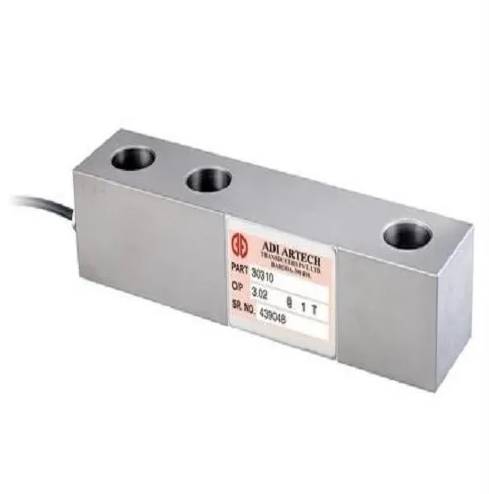

ADI 30310 Single Ended Shear Beam Load Cell | 250kg-2T, OIML C3, IP67, Stainless Steel

5500.0005931.3567% off

GST 18% Inclusive Price : 6490.000

Prices Inclusive of Taxes

Brand : ADI

Item Code : 30310

Availability : In stock

Delivery is available on or before Saturday,18 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :50

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

ADI 30310 Single Ended Shear Beam Load Cell: Precision Weighing for Electronic Scale Applications
The ADI 30310 Single Ended Shear Beam Load Cell delivers exceptional accuracy and durability for electronic weighing systems. Certified to OIML R60 C3 standards, this hermetically sealed load cell features superior performance with minimal temperature effects (zero: <±0.0020%/°C, output: <±0.0015%/°C), ensuring reliable measurements in varying environmental conditions.
Constructed entirely from Stainless Steel with IP67 protection, the 30310 is designed for demanding industrial environments. Its single-ended shear beam design provides excellent resistance to side loads and moments, making it ideal for electronic scales, platform scales, and industrial weighing applications requiring capacities from 250 kg to 2 tons.

Key Features & Technical Advantages:
•   Premium OIML Certification: OIML R60 C3 certified with hermetically sealed construction for long-term stability and accuracy in challenging environments.
•   Robust Stainless Steel Construction: Full stainless steel body with IP67 rating provides excellent corrosion resistance and protection against dust and temporary immersion.
•   Wide Capacity Range: Available in 250kg, 500kg, 1 ton, and 2 ton capacities to suit various electronic scale applications.
•   Exceptional Temperature Stability: Minimal temperature effects on zero (<±0.0020%/°C) and output (<±0.0015%/°C) across operating range of -35°C to +65°C.
•   Optimized Shear Beam Design: Single-ended configuration offers easy installation and excellent resistance to extraneous forces.
•   High Overload Protection: 150% maximum safe overload and 250% ultimate safe overload capacity for enhanced durability.
•   Consistent Electrical Performance: Recommended excitation voltage of 10-12V DC with 2.0 ±0.1 mV/V output sensitivity for reliable signal transmission.

Technical Specifications:
Parameter   Specification
Model   30310
Brand   ADI
Type   Single Ended Shear Beam
Capacity Range   250kg, 500kg, 1T, 2T
Material   Stainless Steel
IP Rating   IP67
Sealing   Hermetically Sealed
Accuracy Class   OIML R60 C3
Creep Error (30 min)   ≤±0.03%
Output Sensitivity   2.0 ±0.1 mV/V
Temperature Effect   <±0.0020%/°C on Zero, <±0.0015%/°C on Output
Operating Temperature   -35°C to +65°C
Maximum Safe Overload   150% FS
Ultimate Safe Overload   250% FS
Input/Output Resistance   380±10Ω / 350±3.5Ω
Excitation Voltage   10-12V DC (Max 15V DC)
Insulation Resistance   ≥1000 MΩ at 50V DC
Primary Application   Electronic Scales

Recommended Applications:
•   Electronic platform scales
•   Industrial bench scales
•   Floor scales and weighing systems
•   Process control weighing
•   Batching and filling systems
•   Checkweighers and sorting systems
