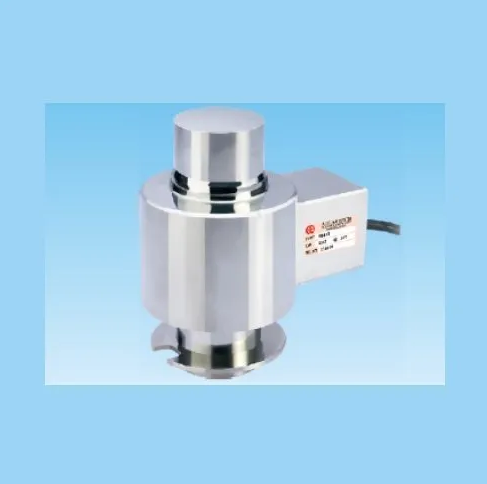

ADI Laser Welded Compression Load Cell: Engineered for Heavy-Duty Silo and Tank Weighing
The ADI Compression Load Cell represents the pinnacle of durability and precision for large-scale industrial weighing applications. Engineered with advanced laser welding technology and constructed from stainless steel, this load cell offers unparalleled protection and longevity in the most demanding environments. Certified to OIML R60 C3 standards, it delivers reliable and accurate measurements for capacities ranging from 10 to 100 tons, making it ideal for silo, tank, and hopper scale applications.
Featuring IP68 ingress protection, this load cell is completely sealed against dust and continuous water immersion, ensuring consistent performance in harsh industrial settings. Its superior design minimizes temperature effects, with zero and output variations maintained below 0.0020%/°C and 0.0015%/°C respectively, providing stable readings across a compensated temperature range of -10°C to +40°C.

Key Features & Benefits:
• Laser Welded Construction: Ensures hermetic sealing and superior durability, protecting against moisture, dust, and corrosive elements.
• Heavy-Duty Capacity Range: Available in capacities from 10 to 100 tons, suitable for large-scale silo, tank, and hopper weighing.
• OIML R60 C3 Certified: Meets international standards for accuracy and reliability in trade-approved weighing applications.
• IP68 Environmental Protection: Fully sealed against dust and water immersion, ideal for outdoor and harsh industrial environments.
• Excellent Temperature Stability: Low temperature effect on zero (<0.0020%/°C) and output (<0.0015%/°C) ensures consistent performance in varying conditions.
• High Overload Safety: Withstands up to 150% safe overload and 300% ultimate overload, providing extra durability and safety margin.
• Robust Electrical Performance: Stable output sensitivity of 2.0 ±0.1 mV/V with high insulation resistance (≥1000 MΩ) ensures reliable signal integrity.

Technical Specifications:
Brand: ADI
Type: Compression Load Cell
Capacity: 10-100 Tons
Material: Stainless Steel
IP Rating: IP68
Accuracy Class: OIML R60 C3
Creep Error: <0.03%
Output Sensitivity: 2.0 ±0.1 mV/V
Temperature Effect on Zero: <0.0020%/°C
Temperature Effect on Output: <0.0015%/°C
Maximum Safe Overload: 150% FS
Ultimate Safe Overload: 300% FS
Input/Output Resistance: 770±5Ω / 700±3Ω
Excitation Voltage: 10-12V DC (Max 25V DC)
Operating Temperature: -35°C to +65°C
Compensated Temperature: -10°C to +40°C

Applications:
• Silo and hopper weighing systems
• Tank and vessel scales
• Bulk material storage monitoring
• Industrial batching and blending
• Chemical and processing plants
• Mining and material handling
