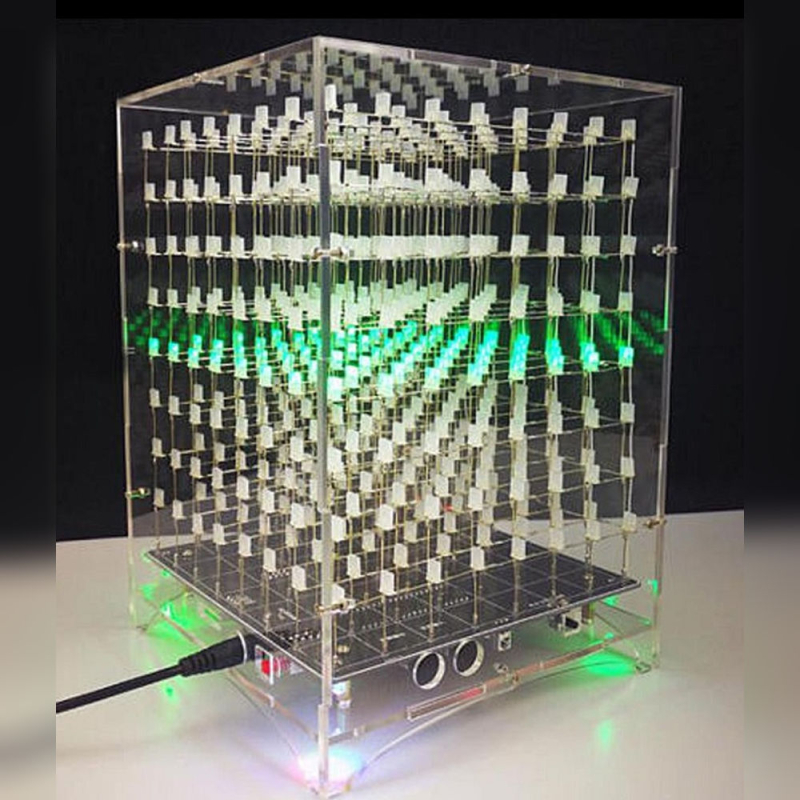

The DIY 3D 8×8×8 Music Light Cube Kit is an advanced electronic DIY project that lets you build a fully functional 3D LED music spectrum cube. This impressive cube is designed for electronics hobbyists, makers, students, and tech enthusiasts who want to explore microcontrollers, LED control, and sound-reactive visual effects. This kit features a built-in 3W amplifier and speaker, allowing the cube to play music directly from a TF memory card, USB pen drive, or through an audio input cable. The cube can also run in offline animation mode, making it a perfect decorative display even without external music input. With 42 pre-programmed stunning animations and 14 music spectrum modes, the cube produces a mesmerizing light show where LEDs move and dance in sync with music. An infrared remote control allows you to switch modes, control playback, adjust volume, and toggle between day and night display settings.
Key Features
• Built-in 3W amplifier + 3W high-quality speaker
• Supports TF card, USB drive, and AUX audio input
• Preloaded MP3 music with adjustable volume
• 42 offline animation modes
• 14 dynamic music spectrum modes
• Infrared remote control for easy operation
• Day/Night mode switching
• PWM breathing light effect
• Onboard 3D control mode and music mode
• Automatic startup animation on power ON
• Acrylic shell compatible design
• Large cube size for strong visual impact
Control Keys & Functions
Four Main Function Keys
• K1 – Mode selection (Day / Night mode)
• K2 – Enter 3D PC mode
• K3 – Enter 42 offline animation modes
• K4 – Enter 14 music spectrum modes
Music Control Keys
• S1 – Play / Pause music
• S2 – Previous track / Volume down
• S3 – Next track / Volume up
Circuit Design & Architecture
This cube is powered by a professional multi-chip control system:
• STC12C5A60S2 – High-speed 1T microcontroller
• 74HC245 – Buffer driver (cascade connection)
• 74HC138 – High-speed scanning chip
• 74HC595N – Serial control chip
• 8002B – Professional audio power amplifier
• High-current MOS driver for uniform LED brightness
Pattern Customization Options
You can modify animations in two ways:
1. Firmware programming (advanced – requires coding knowledge)
2. PC software control via USB to serial module (easy method)
Kit Contents
• 1 × PCB Baseboard
• 1 × IR Wireless Remote (Battery Included)
• 1 × USB-A to 5mm DC Power Cable (100cm)
• 1 × 3.5mm Audio Cable (30cm)
• 1 × USB to Serial TTL Programming Module
• 1 × Hookup Wire Set
• 1 × Screws & Standoffs Set
• 512 × RGB Square LEDs (2×5×7mm)
• 2 × 50-pin Female Berg Headers
