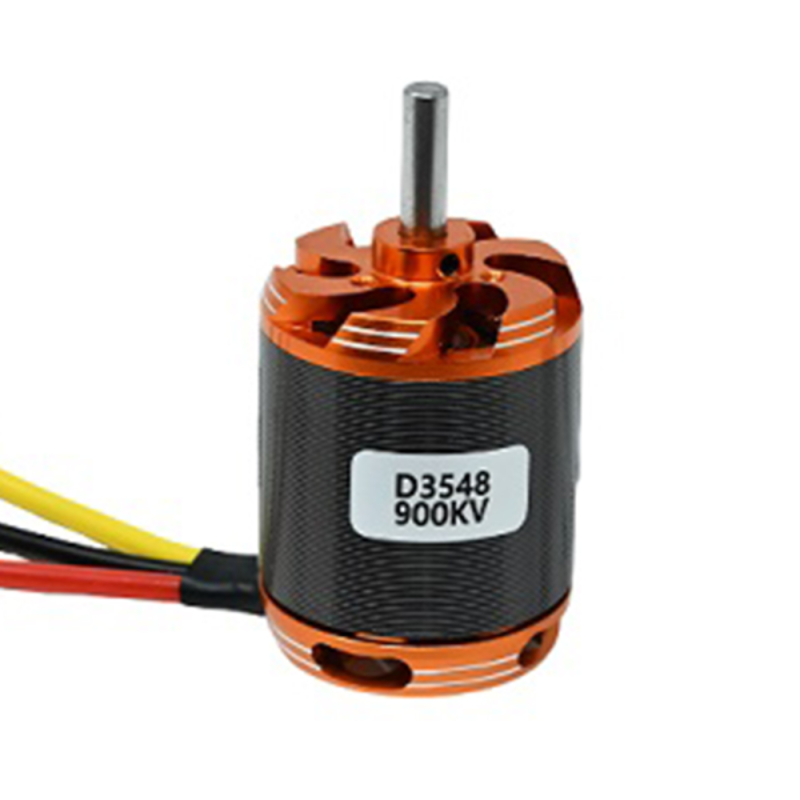

DYS D3548-5 900 KV BLDC Motor

1911.0172795.76332% off

GST 18% Inclusive Price : 2255.000

Prices Inclusive of Taxes

Brand : Dys

Item Code : SS_DYS3548_900KNMOT

Availability : In stock

Delivery is available on or before Wednesday,15 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :2

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

Want to request for bulk purchase?

GET BULK QUOTE NOW

The DYS D3548-5 900KV BLDC Brushless Motor is a high-performance outrunner motor designed for quadcopters, FPV drones, multirotors, and RC aircraft. Built for power, efficiency, and durability, this motor is ideal for users looking to achieve higher thrust and faster response in medium-sized drone builds. With a 900KV rating, this motor delivers enhanced speed and strong thrust output, making it perfect for dynamic flight performance. It supports 3S–5S LiPo batteries and works efficiently with 11″–13″ propellers. The motor comes with pre-soldered 3mm bullet connectors, allowing easy and quick connection to ESCs without soldering. Its robust steel construction, combined with smooth throttle response and compact design, ensures reliable performance in demanding flight environments.
Key Features
• High-performance 900KV BLDC motor for drones and RC aircraft
• Up to 1780g thrust per motor for powerful flight capability
• Supports 3S–5S LiPo batteries (11.1V–18.5V)
• Compatible with 11″–13″ propellers
• Pre-soldered bullet connectors for plug-and-play installation
• Smooth and responsive throttle control
• Durable steel construction for long-lasting performance
• Lightweight and compact design
• Excellent value for money
Technical Specifications
• Model: D3548-5
• KV Rating: 900KV
• Battery: 3–5S LiPo (11.1V–18.5V)
• Max Current: 70A
• No Load Current: 1.8A
• Max Power: 770W
• Internal Resistance: 0.040 Ω
• Max Thrust: Up to 1780g
• Shaft Diameter: 5mm
• Dimensions: 35 × 48 mm
• Weight: 159g (including connectors)
Package Includes
• 1 × DYS D3548-5 900KV Brushless Motor
• 1 × Prop Adapter
• 1 × Motor Holder (X-type) with screws
• 1 × User Manual
