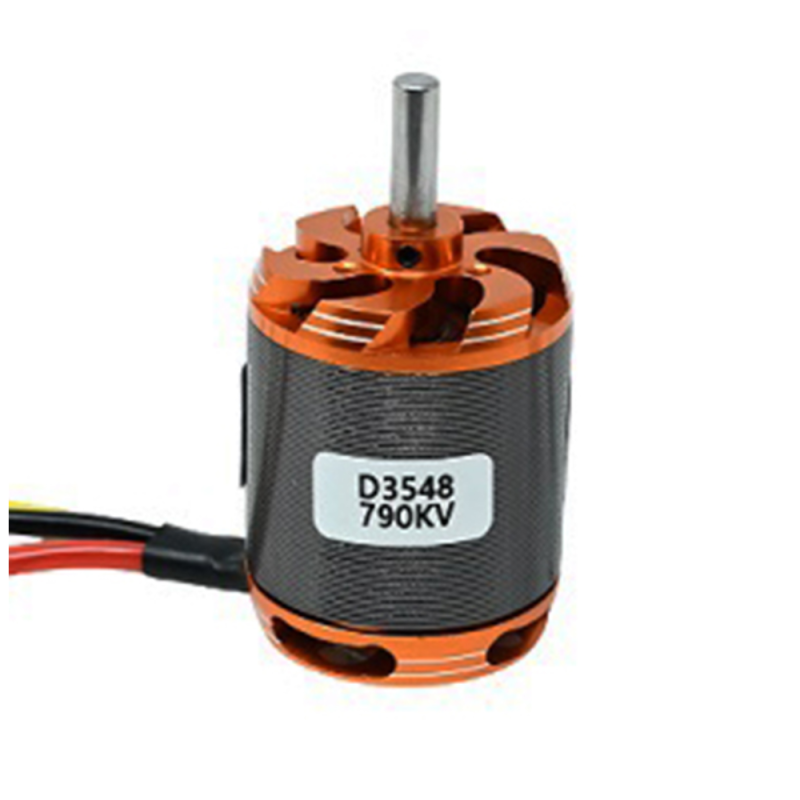

DYS D3548-6 790 KV BLDC Motor

1957.6272965.25434% off

GST 18% Inclusive Price : 2310.000

Prices Inclusive of Taxes

Brand : Dys

Item Code : SS_SDYS3548_790KVMOT

Availability : In stock

Delivery is available on or before Monday,13 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :2

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

Want to request for bulk purchase?

GET BULK QUOTE NOW

The DYS D3548-6 790KV BLDC Brushless Motor is a powerful and efficient motor designed for quadcopters, multirotors, FPV drones, and RC aircraft. Built to deliver high thrust, smooth performance, and reliability, this motor is an excellent choice for medium to heavy-duty drone builds. With a 790KV rating, this motor offers a strong balance of power and efficiency, making it ideal for setups using 3S to 5S LiPo batteries and 11″–13″ propellers. It can generate up to 1650g thrust per motor, enabling high-performance quadcopter builds with excellent lift capacity. Equipped with pre-soldered 3mm bullet connectors, the motor allows quick and hassle-free connection to ESCs without the need for soldering. Its durable steel construction, compact design, and smooth throttle response ensure consistent performance even under demanding flight conditions.
Key Features
• High-performance 790KV BLDC motor for drones and RC aircraft
• Up to 1650g thrust per motor for powerful flight performance
• Supports 3S–5S LiPo batteries (11.1V–18.5V)
• Compatible with 11″–13″ propellers
• Pre-soldered bullet connectors for easy installation
• Smooth throttle response for precise control
• Durable steel construction for long-lasting use
• Lightweight and compact design
• Excellent value for money
Technical Specifications
• Model: D3548-6
• KV Rating: 790KV
• Battery: 3–5S LiPo (11.1V–18.5V)
• Max Current: 40A
• No Load Current: 1.8A
• Max Power: 715W
• Internal Resistance: 0.040 Ω
• Max Thrust: 1650g
• Shaft Diameter: 5mm
• Dimensions: 35 × 48 mm
• Weight: 159g (including connectors)
Package Includes
• 1 × DYS D3548-6 790KV Brushless Motor
• 1 × Prop Adapter
• 1 × Motor Holder (X-type) with screws
• 1 × User Manual
