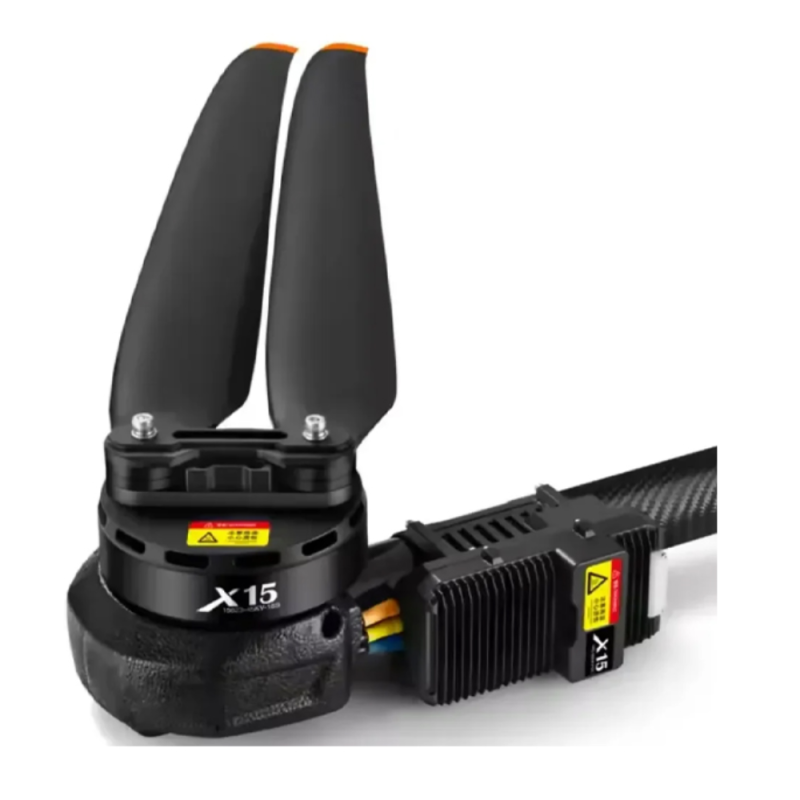

Hobbywing X15 Motor Power System Combo CW

The Hobbywing X15 Motor Power System Combo CW is engineered for high-performance agricultural drones, delivering exceptional power, efficiency, and durability. Designed for heavy-lift UAV applications, this integrated propulsion system combines a 5500W motor, ESC, and 63×24″ propeller into one optimized unit to provide smooth, reliable performance even in demanding environments. Capable of generating up to 72 kg of thrust per rotor, the X15 ensures stable flight and powerful lifting capability for large-scale spraying, mapping, and transport missions. Its IPX6 waterproof rating protects internal components from water and harsh weather conditions, making it suitable for agricultural and industrial operations. Built for compatibility with 18S LiPo batteries and optimized for 60 mm tube arm mounting, the X15 also supports CAN communication and PWM control, allowing advanced parameter tuning and seamless integration with modern drone flight controllers.
Key Features
•    Extreme Thrust: Up to 72 kg thrust per rotor for heavy-lift drone operations
•    High Efficiency: Delivers 8.2–7.6 g/W efficiency at rated thrust (37.5 kg)
•    Integrated System: 5500W motor, ESC, and 63×24″ propeller combined into one propulsion unit
•    Rugged & Waterproof: IPX6-rated motor and ESC designed for harsh environments
•    Smart Control: Supports CAN communication and PWM control with parameter tuning
•    Heavy Payload Support: Suitable for large agricultural drones carrying up to 150 kg payload
•    Optimized Mounting: Designed for 60 mm tube drone arms
Package Includes
•    1 × Hobbywing X15 Motor Combo CW
•    1 × Electronic Speed Controller (ESC)
•    1 × Propellers
•    1 × Power cables
•    1 × Mounting accessories
Important Notes
1.    Performance data is measured in a laboratory environment at 25°C and sea level altitude with throttle adjustment.
2.    Weight errors may occur due to different production batches.
3.    Based on the HOBBYWING Protocol, ESC parameters can be adjusted using HOBBYWING DataLink, CAN Analyzer, DroneCAN GUI, etc.
o    Caution: Parameter modifications may affect actual flight performance; adjust carefully.
4.    Throttle Stroke Adjustment:
o    Open-source flight controller: Set throttle channel stroke to 1050–1950 μs, set PWM_MIN = 1050 and PWM_MAX = 1950.
o    Closed-source flight controller: Adjust the joystick stroke on the remote controller, save settings, then calibrate the joystick stroke within the flight controller settings.
o    Motor: Enter propulsion system settings and adjust throttle stroke based on actual needs.
5.    Propeller material: Carbon fiber reinforced nylon composite.
