Keli QS-A Weighbridge Load Cell | OIML C3, 5-40 Ton Capacity, IP68, Nickel Alloy Steel

12500.00013558.4758% off

GST 18% Inclusive Price : 14750.000

Prices Inclusive of Taxes

Brand : Keli

Item Code : QS-A

Availability : In stock

Delivery is available on or before Saturday,18 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :50

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

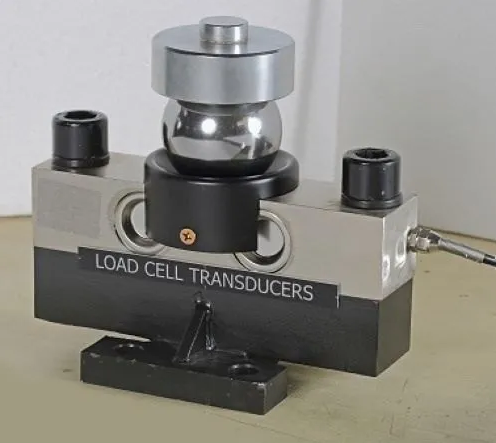

Keli QS-A Weighbridge Load Cell: Precision Engineered for Industrial Weighing Excellence
The Keli QS-A Weighbridge Load Cell represents the pinnacle of precision weighing technology, engineered for demanding industrial applications where accuracy and reliability are non-negotiable. Certified to OIML R60 C3 accuracy class, this high-performance load cell delivers exceptional stability with a combined error of ±0.02%, making it the ideal choice for critical weighing operations in harsh environments.
Constructed from rugged Nickel Alloy Steel and featuring IP68 ingress protection, the QS-A is built to withstand dust, moisture, and extreme temperatures from -30°C to +70°C. With capacity options ranging from 5 to 40 tons and a maximum safe overload of 150% FS, this load cell ensures long-term durability and precise measurement for suspended hoppers, tank weighing, and industrial weighbridge systems.

Key Features & Technical Advantages:
•   Premium Accuracy & Certification: OIML R60 C3 certified with ±0.02% combined error and 2.0 ±0.002 mV/V output sensitivity for reliable, repeatable measurements.
•   Robust Industrial Construction: Nickel Alloy Steel material with IP68 rating ensures superior corrosion resistance and protection against harsh environmental conditions.
•   Wide Capacity Range: Available in 5, 10, 15, 20, 25, 30, 35, and 40-ton capacities to suit various industrial weighing applications.
•   Exceptional Temperature Stability: Compensated temperature range of -10°C to +40°C with minimal temperature effect on zero and output (±0.02%).
•   High Overload Protection: 150% maximum safe overload and 200% ultimate safe overload capacity for enhanced durability and safety.
•   Optimized Electrical Performance: Recommended excitation voltage of 10-12V DC with high insulation resistance (≥5000 MΩ at 50V DC) for stable operation.
•   Flexible Installation Options: Standard cable lengths of 12 and 16 meters with 3000 load cell intervals (nLC) for versatile system integration.

Technical Specifications:
Parameter   Specification
Model   QS-A
Brand   Keli
Capacity Range   5, 10, 15, 20, 25, 30, 35, 40 Ton
Material   Nickel Alloy Steel
IP Rating   IP68
Accuracy Class   OIML R60 C3
Combined Error   ±0.02%
Creep Error (30 min)   ±0.02%
Output Sensitivity   2.0 ±0.002 mV/V
Temperature Effect   ±0.02% on Zero & Output
Operating Temperature   -30°C to +70°C
Compensated Range   -10°C to +40°C
Maximum Safe Overload   150% FS
Ultimate Safe Overload   200% FS
Input/Output Resistance   750±10Ω / 702±3Ω
Excitation Voltage   10-12V DC (Max 15V DC)
Insulation Resistance   ≥5000 MΩ at 50V DC
Load Cell Intervals   3000 (nLC)
Cable Length   12m, 16m
Application   Suspended Hoppers, Weighbridges, Tank Weighing

Recommended Applications:
•   Suspended hoppers and silos
•   Industrial weighbridges
•   Tank and vessel weighing systems
•   Process control weighing
•   Batching and blending systems
•   Crane scales and overload protection
