Keli S-Type Load Cell | 100-5000kg, OIML C3, IP66, Nickel Alloy Steel

4500.0005083.89811% off

GST 18% Inclusive Price : 5310.000

Prices Inclusive of Taxes

Brand : Keli

Item Code : SC-301

Availability : In stock

Delivery is available on or before Saturday,18 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :50

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

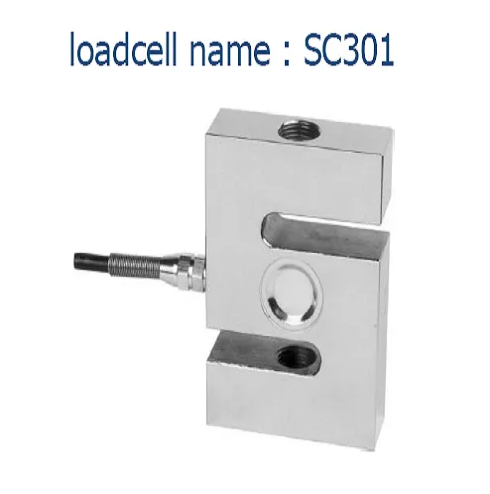

Keli S-Type Load Cell: Hermetically Sealed Precision for Dynamic Weighing Applications
The Keli S-Type Load Cell delivers exceptional accuracy and durability for dynamic weighing systems where both tension and compression measurements are required. Certified to OIML R60 C3 standards with a combined error of ±0.02%, this hermetically sealed load cell maintains precision across a wide capacity range from 100 kg to 5000 kg, making it versatile for various industrial applications.
Constructed from high-strength Nickel Alloy Steel with IP66 ingress protection, this S-type load cell is designed to withstand harsh environments while providing reliable performance in dynamic weighing scenarios. Its hermetically sealed construction ensures long-term stability and protection against moisture, dust, and other contaminants that could compromise measurement accuracy.

Key Features & Technical Advantages:
•   Wide Capacity Range: Available in 100kg, 250kg, 500kg, 1000kg, 2000kg, 3000kg, 4000kg, and 5000kg capacities for versatile application needs.
•   Hermetically Sealed Protection: Complete environmental sealing ensures long-term stability and reliability in challenging conditions.
•   Dynamic Weighing Optimized: Specifically designed for applications requiring both tension and compression measurements with consistent accuracy.
•   Robust Environmental Resistance: IP66 rating provides complete protection against dust and powerful water jets from any direction.
•   Excellent Temperature Stability: Minimal temperature effects on zero (≤±0.023%/°C) and output (≤±0.017%/°C) across -10°C to +40°C compensated range.
•   High Overload Protection: 150% maximum safe overload and 200% ultimate safe overload capacity for demanding applications.
•   Consistent Electrical Performance: Matched 350Ω input/output resistance with 2.0±0.04 mV/V output sensitivity for reliable signal transmission.

Technical Specifications:
Parameter   Specification
Model   S-Type Series
Brand   Keli
Type   S-Type Load Cell
Capacity Range   100-5000 kg (Multiple increments)
Material   Nickel Alloy Steel
IP Rating   IP66
Sealing   Hermetically Sealed
Accuracy Class   OIML R60 C3
Combined Error   ±0.02%
Creep Error (30 min)   ±0.024%
Output Sensitivity   2.0 ±0.04 mV/V
Temperature Effect   ≤±0.023%/°C on Zero, ≤±0.017%/°C on Output
Operating Temperature   -35°C to +65°C
Compensated Range   -10°C to +40°C
Maximum Safe Overload   150% FS
Ultimate Safe Overload   200% FS
Input/Output Resistance   350±10Ω / 350±5Ω
Excitation Voltage   9-12V DC (Max 15V DC)
Insulation Resistance   ≥5000 MΩ at 50V DC
Primary Application   Dynamic Weighing Systems

Recommended Applications:
•   Dynamic weighing and force measurement
•   Hoist and crane scales
•   Material testing machines
•   Industrial process control
•   Tank and silo weighing (tension applications)
•   Overhead weighing systems
•   Force monitoring in manufacturing
•   Quality control and testing equipment
