NE555 + CD4017 Red Blue Double Color Flashing Lights Board DIY Kit

131.441211.01738% off

GST 18% Inclusive Price : 155.100

Prices Inclusive of Taxes

Brand : Generic

Item Code : SS_MULDIYKITS_29

Availability : In stock

Delivery is available on or before Thursday,16 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :25

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

Want to request for bulk purchase?

GET BULK QUOTE NOW

The NE555 + CD4017 Red Blue Double Color Flashing Lights Board DIY Kit is a fun and educational electronics project that lets you build a classic flashing warning light circuit using two of the most popular ICs in electronics – the NE555 timer and the CD4017 decade counter. This DIY kit produces an attractive alternating red and blue LED flashing effect, like emergency or police warning lights. It is an excellent hands-on learning tool for students, hobbyists, and electronics enthusiasts who want to understand timing circuits, counters, and basic digital logic.
Key Features
• Uses NE555 timer IC for pulse generation
• Uses CD4017 decade counter for LED sequencing
• Alternating red and blue flashing effect
• Simulates real warning light patterns
• Educational and beginner-friendly DIY kit
• Improves soldering and circuit understanding
• Compact and low power design
• Ideal for school projects and electronics training
Technical Specifications
• Operating Voltage: 12V DC
• LED colours: Red & Blue
• Light Source: 5mm LEDs
• ICs Used: NE555 + CD4017
• Circuit Type: Flashing / Sequencing LED Board
• Assembly Type: Through-hole DIY soldering kit

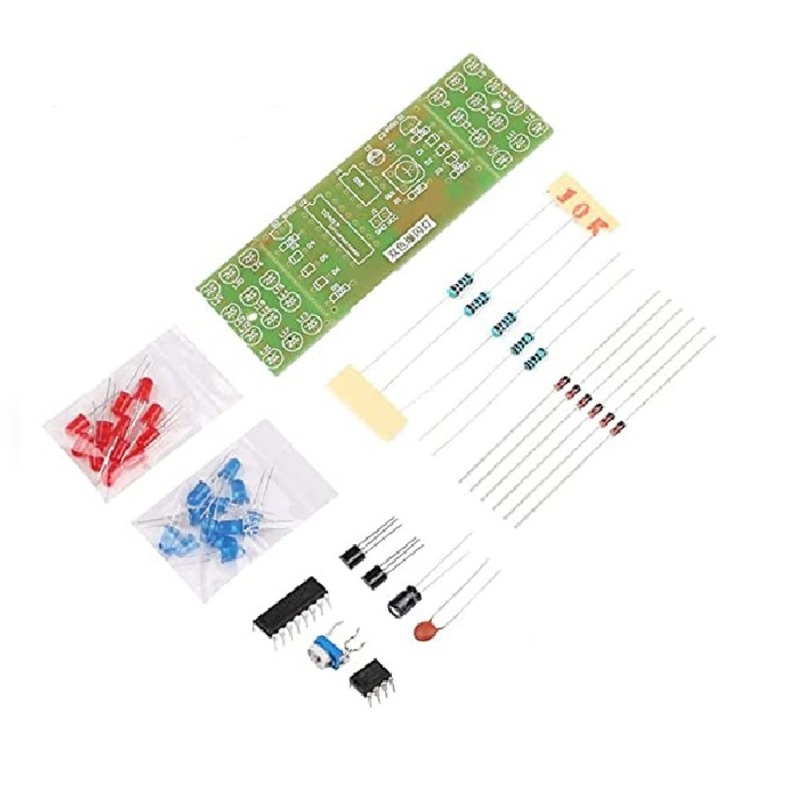

Package Includes
• 3 × Metal Film Resistor 10KΩ
• 2 × Metal Film Resistor 10–100Ω
• 12 × Blue LED (5mm)
• 12 × Red LED (5mm)
• 6 × Diode 1N4148
• 1 × NE555 Timer IC
• 1 × CD4017 Counter IC
• 2 × S8050 Transistor
• 1 × Adjustable Resistor (Preset)
• 1 × Electrolytic Capacitor
• 1 × Ceramic Capacitor
• 2 × Connecting Wires
• 1 × PCB Board
