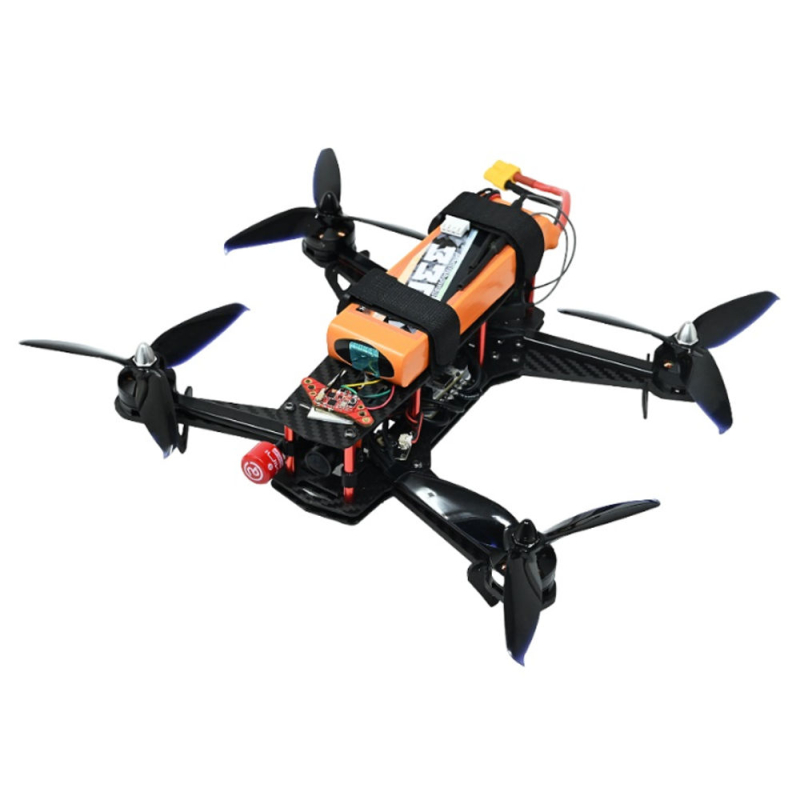

Pro-Range DIY Analog FPV Racing Drone Kit

23770.25426694.91511% off

GST 18% Inclusive Price : 28048.900

Prices Inclusive of Taxes

Brand : Pro-Range

Item Code : SS_MULDIYKITS_93

Availability : In stock

Delivery is available on or before Friday,17 Apr

Delivery Options:

Delivery :

Qty:

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

Want to request for bulk purchase?

GET BULK QUOTE NOW

The Pro-Range DIY Analog FPV Racing Drone Kit is a complete build-it-yourself racing and freestyle drone package designed for enthusiasts, hobbyists, and learners. Built on a durable 250 mm carbon fiber frame, this kit combines high-performance brushless motors, a powerful flight controller stack, and a reliable radio system to deliver a professional FPV flying experience. With the GOKU F722 Pro V2 flight controller and 55A BLHeli_32 ESC, the drone offers smooth, responsive control and high-speed performance. The included 5.8 GHz FPV system provides real-time video transmission, making it ideal for racing, freestyle flying, and FPV practice.
Notes:
• Warranty applies only to defective components, not the entire kit.
• Some components (motors, VTX, camera, receiver) require soldering.
• Configured for FlySky FS-i6S transmitter; setup may vary with other radios.
• Battery type may vary depending on availability.
• Always verify motor direction, speed, and battery voltage before flight.
Key Features
• Strong 250 mm carbon fiber frame for durability
• High-speed MT2204 2300KV brushless motors
• GOKU F722 Pro V2 flight controller with 55A BLHeli_32 ESC
• 5.8 GHz FPV system for real-time video transmission
• FlySky FS-i6S transmitter with 10-channel receiver
• Compatible with Android FPV OTG receiver and goggles
• Easy setup using Betaflight with IBUS protocol
Technical Specifications
• Frame Size: 250 mm wheelbase, 4 mm arms
• Flight Controller: GOKU F722 Pro V2 (F7 processor)
• ESC: 4-in-1, 55A BLHeli_32, 128 kHz
• Motors: MT2204, 2300 KV (2 CW + 2 CCW)
• Propellers: 5152 racing props
• Video Transmission: 5.8 GHz analog FPV
Package Includes
• 1 × Q250 Carbon Fiber FPV Frame (250 mm)
• 4 × MT2204 2300KV Brushless Motors (2 CW + 2 CCW)
• 1 × Flywoo GOKU F722 Pro V2 55A 32-bit Stack
• 1 × HGLRC Zeus Nano VTX (350 mW)
• 1 × 1500 TVL Mini FPV Camera
• 1 × 5.8 GHz RHCP SMA Lollipop Antenna
• 1 × 5.8 GHz UVC OTG Android Phone Receiver
• 1 × 3S 3300 mAh LiPo Battery
• 1 × Pro-Range 5152 Propeller Set (2 CW + 2 CCW)
• 2 × LiPo Battery Straps (20 cm)
• 1 × Brush Protection Tube Set
• 1 × Heat Shrink Sleeve (2 mm, 1 m)
• 1 × 26 AWG Teflon Wire (1 m)
• 1 × 3D-Printed Camera Holder
• 1 × SafeConnect T-Connector Male Pigtail
• 1 × 2.5 mm Allen Key
• 1 × 2 mm Allen Key
• 1 × User Manual
