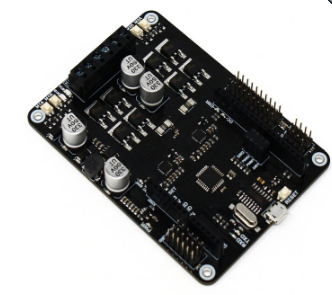

SmartElex 10D Motor Driver For Arduino UNO

1481.9832117.79730% off

GST 18% Inclusive Price : 1748.740

Prices Inclusive of Taxes

Brand : SmartElex

Item Code : 198176

Availability : Out Of stock

Delivery is available on or before Thursday,16 Apr

Sold Out

This item is currently out of stock

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

Want to request for bulk purchase?

GET BULK QUOTE NOW

We understand our maker’s needs and consequently adding the most improved and powerful motor drivers with the latest features to provide a great utility that makes it useful for a wide variety of mechatronics. Here is all new SmartElex 10D Dual Channel High Current Motor Driver with Arduino UNO specifically designed for mobile robots. It can be used in a wide range of applications such as in racing robots Combat robot, Robot Rumble and many more.

UNO + 10A dual channel with Atmega328P chip which is the same microcontroller on official Arduino UNO where you can select Arduino/Genuino UNO in Arduino IDE to develop the program.

With onboard 5V 3A buck converter power supply and a wide range of motor operating Voltage, the driver performs very dynamically in small brushed motor applications as well as heavy 10A continuous current motors which can be raised up to 30A which is not possible in normal specific rating drivers. Additionally, Current Limiting and Temperature control feature always drive your application in safe mode.

The board incorporates most of the components of the typical applications with the minimum interface, the board is ready to Plug and Play. Simply add in power, do simple coding and this board is ready to drive brushed motor. It also offers several enhancements such as support for both locked-antiphase and sign-magnitude PWM signal as well as using full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay and reduce the time for wiring.

Features:

1. Wide 7V to 28V motor Operating Voltage.

2. On board 5V 3A Buck Converter.

3. Continuous 10A maximum current without Heatsink and 30A peak current for 10

4. Two brushed DC motor Bidirectional control.

5. Current limiting at 35A.

6. PWM frequency up to 32KHz

7. Onboard Temperature Sensor

8. Internal thermal shutdown

9. Under-voltage lockout

10. PWM and direction controlled driving of four externally powered NMOS transistors

11. 3V and 5V logic level input.

Package Includes:

1 x SmartElex 10D Motor Driver for Arduino UNO
