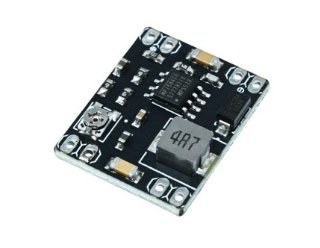

SmartElex Mini MP1584 DC-DC 3A Adjustable Buck Module

80.271168.64452% off

GST 18% Inclusive Price : 94.720

Prices Inclusive of Taxes

Brand : SmartElex

Item Code : 29765

Availability : In stock

Delivery is available on or before Thursday,16 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :43

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

Want to request for bulk purchase?

GET BULK QUOTE NOW

The SmartElex Mini MP1584 DC-DC 3A Adjustable Buck Module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter that uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET.

It features a soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at insufficient supply voltage.

Small size, lightweight, low internal power consumption, and wide input voltage range of 4.5V to 28V make this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices.

Applications:

• DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects

• Robotics

• Breadboard power supply

• Manual speed adjustment of small DC motors

• Power Supply for RC project planes, cars, helicopters

• Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack

• Receiver/servo power supply

• Communications equipment power supply

• Mobile equipment power supplies

Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.

Note: PCB board color may be different from the actual product.

Features :

• Wide 4.5V to 28V Operating Input Range

• High-Efficiency Pulse Skipping Mode for Light Load

• Ceramic Capacitor Stable

• Internal Soft-Start

• Internally Set Current Limit without a Current Sensing Resistor

Package Includes :

1 x SmartElex Mini MP1584 DC-DC 3A Adjustable Buck Module
