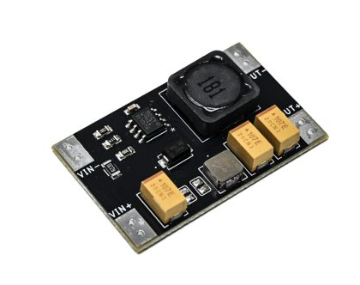

The SmartElex MC33063A Boost Module – 15V, 1.5A is a versatile and efficient DC-DC boost converter designed to step up a lower input voltage to a stable 15V output, providing up to 1.5A of current. Based on the MC33063A integrated circuit, this module is perfect for powering various electronic devices from a lower voltage source, such as batteries or low-voltage power supplies.
Which Output to Use:
• Filtered Output: Recommended for most applications, especially if you’re powering sensitive devices like microcontrollers, analog circuits, or digital systems that require clean, stable DC voltage.
• Non-Filtered Output: Can be used for simpler applications or low-power devices that can tolerate ripple, or where additional filtering can be done downstream.
Features:
1. Protection Features: Includes overload protection and short-circuit protection for safety.
2. Stable Output: Delivers low ripple, stable 15V output voltage.
3. Operating Temperature: -40°C to +85°C range, suitable for various environmental conditions.
4. Inductor Value: Typically 100µH to 220µH for optimal performance.
5. Capacitor Value: Typically 100µF to 470µF to stabilize the output voltage.
6. Compact Package: Available in 8-pin DIP or SOIC packaging for easy integration into designs.
7. Fixed Output Voltage: Provides a stable 15V output.
8. Output Current: Capable of delivering up to 1.5A.
9. Wide Input Voltage Range: Accepts input voltages from 3V to 40V.
10. High Efficiency: Typically operates with 70% to 85% efficiency, ensuring minimal power loss.
11. Switching Frequency: Runs at 100kHz, optimizing performance.
Applications:
1. Battery-Powered Devices: Ideal for powering devices like handheld gadgets or battery-operated electronics that require a stable 15V supply.
2. LED Drivers: Can be used for powering 15V LEDs in various lighting applications.
3. Power Supply Units (PSUs): Perfect for custom power supplies requiring a 15V output.
4. Sensors and Communication Devices: Supplies stable 15V to sensors, microcontrollers, and other small electronic systems.
5. Portable Electronics: A great choice for portable systems needing a reliable 15V voltage source from a lower input.
Package Includes:
1X SmartElex MC33063ADR Boost Module – 15V, 1.5A
