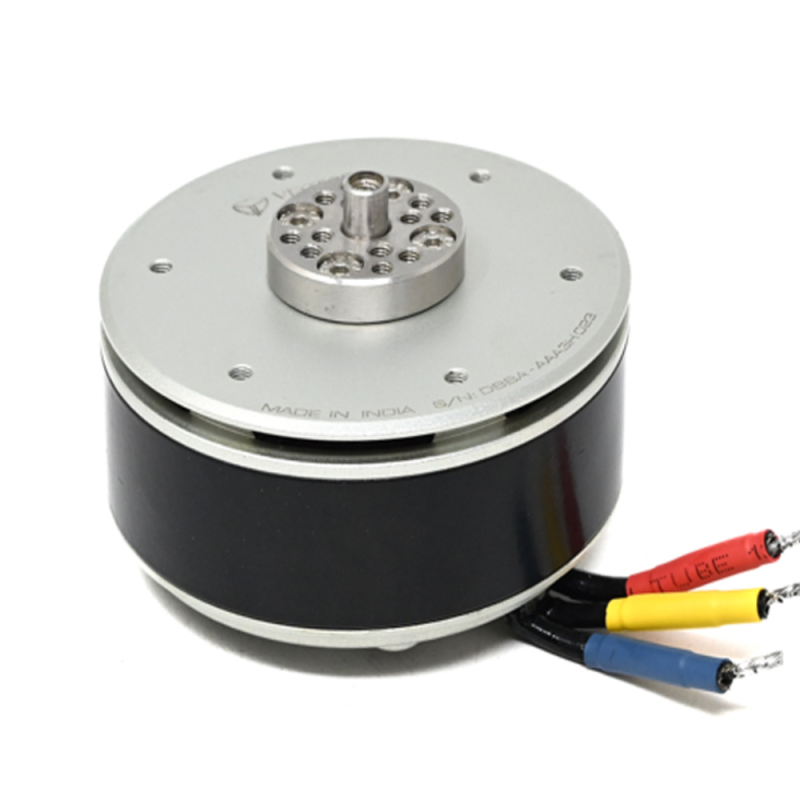

The Vector 6015 – 170KV Brushless Motor is a powerful propulsion solution designed for heavy-lift UAVs and professional drone applications. Built for efficiency, durability, and reliable performance, this motor is suitable for industrial drones, aerial imaging platforms, and high-payload UAV missions. With a 170KV rating, the motor provides strong torque and efficient power delivery, making it compatible with large propellers up to 24 inches. It supports a nominal voltage range of 24V–48V (6S–12S LiPo) and performs optimally within 44V–52V using 12S LiHV batteries, enabling high-efficiency flight operations. The motor can handle a maximum continuous current of 35A for up to 180 seconds and produce up to 1634W of continuous power, ensuring stable performance during demanding aerial tasks. Its torque constant (Kt) of 0.072 Nm/A at 5184 rpm helps maintain efficient thrust generation and smooth operation.
Features
• 170KV high-efficiency brushless motor
• Compatible with 6S–12S LiPo batteries (24V–48V)
• Optimized for propellers up to 24 inches
• Torque constant: 0.072 Nm/A at 5184 rpm
• Maximum continuous current: 35A (180 seconds)
• Maximum continuous power: 1634W (180 seconds)
• Power density: 4.3 W/g rated, 7.02 W/g maximum
• IP45 protection rating against dust and moisture
Specifications
• Model: Vector 6015
• KV Rating: 170KV
• Maximum Thrust: 9.5 kg
• Voltage Range: 24V – 48V (6S – 12S LiPo)
• Operating Voltage: 44V – 52V (12S LiHV)
• Maximum Continuous Current: 35A (180 sec)
• Maximum Continuous Power: 1634W (180 sec)
• Propeller Compatibility: Up to 24 inches
• Weight: Approx. 380 g
• IP Rating: IP45
• Design Life: 1000 hours
• Country of Origin: India
Package Includes
• 1 × Vector 6015 – 170KV Motor
