Zemic ATEX Weighbridge Load Cell | 30 Ton Capacity, OIML C3, IP68, Nickel Alloy Steel

15000.000

GST 18% Inclusive Price : 17700.000

Prices Inclusive of Taxes

Brand : Zemic

Item Code : HM9B

Availability : In stock

Delivery is available on or before Friday,17 Apr

Delivery Options:

Delivery :

Qty:

Minimum Buy Qty :50

Add to cart Buy now

Download Datasheet

Save Extra with offers

Get Cashback
Get GST invoice and save up to 18% on Business Purchases.

Registered users will receive business(GST) invoice with your company name and GST number.

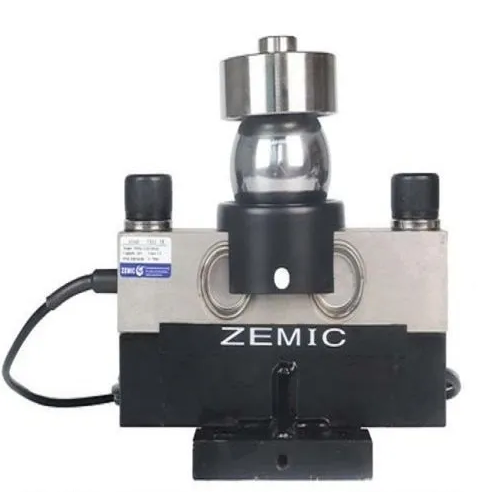

Zemic Weighbridge Load Cell: ATEX Certified Precision for Hazardous and Demanding Environments
The Zemic Weighbridge Load Cell represents the highest standard of safety and precision for industrial weighing in challenging conditions. With dual ATEX and OIML R60 C3 certifications, this load cell delivers exceptional accuracy (combined error ≤±0.023%) while meeting stringent safety requirements for use in potentially explosive atmospheres. Its current calibrated design ensures stable performance in environments where electrical safety is paramount.
Engineered from durable Nickel Alloy Steel with superior IP68 ingress protection, this 30-ton capacity load cell withstands complete immersion and extreme environmental conditions from -35°C to +65°C. Featuring a matched input/output resistance of 700±7Ω and high insulation resistance (≥5000 MΩ), it provides reliable signal integrity for critical weighbridge applications where measurement accuracy directly impacts operational efficiency and compliance.

Key Features & Technical Advantages:
•   Dual Safety & Precision Certification: ATEX certified for hazardous areas and OIML R60 C3 certified for trade-approved accuracy with ≤±0.023% combined error.
•   Current Calibrated Design: Specifically engineered for stable performance in environments with potential electrical interference and safety concerns.
•   Superior Environmental Protection: IP68 rated nickel alloy steel construction ensures complete protection against dust and continuous water immersion.
•   Exceptional Signal Integrity: Matched 700±7Ω input/output resistance with 2.0±0.002 mV/V output sensitivity for precise signal transmission.
•   Robust Temperature Performance: Minimal temperature effects on zero (≤±0.015%/°C) and output (≤±0.011%/°C) across -10°C to +40°C compensated range.
•   High Overload Safety: 150% maximum safe overload and 300% ultimate safe overload capacity for demanding industrial applications.
•   Extended Cable Length: Standard 12-meter cable facilitates flexible installation in large-scale weighbridge systems.

Technical Specifications:
Parameter   Specification
Model   Weighbridge Series
Brand   Zemic
Capacity   30 Ton
Material   Nickel Alloy Steel
IP Rating   IP68
Certifications   ATEX, OIML R60 C3
Calibration   Current Calibrated
Combined Error   ≤±0.023%
Creep Error (30 min)   ≤±0.016%
Output Sensitivity   2.0 ±0.002 mV/V
Temperature Effect   ≤±0.015%/°C on Zero, ≤±0.011%/°C on Output
Operating Temperature   -35°C to +65°C
Compensated Range   -10°C to +40°C
Maximum Safe Overload   150% FS
Ultimate Safe Overload   300% FS
Input/Output Resistance   700±7Ω / 700±7Ω
Excitation Voltage   5-12V DC (Max 18V DC)
Insulation Resistance   ≥5000 MΩ at 50V DC
Load Cell Intervals   3000 (nLC)
Cable Length   12 meters
Primary Application   Weighbridges in Hazardous Areas

Recommended Applications:
•   ATEX certified weighbridges
•   Chemical and petrochemical plants
•   Oil and gas refineries
•   Mining and quarry operations
•   Hazardous material handling facilities
•   Industrial sites requiring explosion-proof equipment
•   Bulk material weighing in controlled environments
