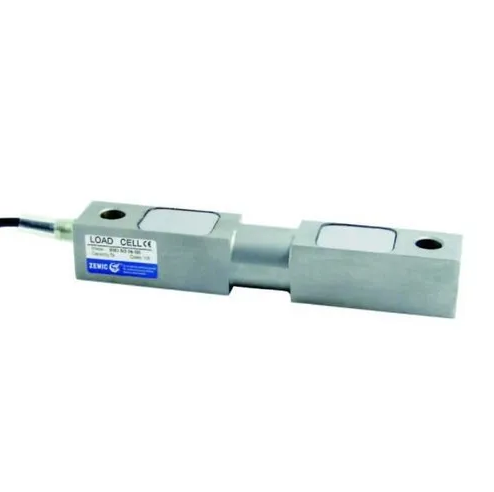

Zemic Double Ended Shear Beam Load Cell: Dual-Certified Precision for Tank and Vessel Weighing
The Zemic Double Ended Shear Beam Load Cell delivers exceptional accuracy and reliability for industrial tank and vessel weighing applications. With dual NTEP and OIML R60 C3 certifications and a combined error of ≤0.023%, this load cell meets both North American and international trade standards, making it suitable for global applications where regulatory compliance is essential.
Engineered from durable Nickel Alloy Steel with IP67 ingress protection, this 5000kg (5-ton) capacity load cell withstands harsh industrial environments while providing stable, accurate measurements. The double-ended shear beam design offers optimal force distribution and excellent resistance to side loads, making it perfectly suited for tank weighing, silo monitoring, and vessel measurement systems where long-term reliability is critical.

Key Features & Technical Advantages:
• Dual Regulatory Compliance: NTEP and OIML R60 C3 certified for use in trade applications across North America and international markets with ≤0.023% combined error.
• Tank Weighing Optimized: Specifically designed for tank and vessel applications with excellent stability and side load resistance.
• Robust Environmental Protection: IP67 rated nickel alloy steel construction provides protection against dust and temporary immersion (up to 1 meter for 30 minutes).
• Excellent Temperature Stability: Minimal temperature effects on zero (≤0.015%/°C) and output (≤0.011%/°C) across -10°C to +40°C compensated range.
• High Overload Capacity: 150% maximum safe overload and 300% ultimate safe overload for demanding industrial applications.
• Strong Signal Output: 3.0±0.08 mV/V output sensitivity with matched 700±7Ω input and 703±4Ω output resistance for reliable signal transmission.
• Certified Precision: Meets strict accuracy requirements for commercial weighing applications with 3000 load cell intervals.

Technical Specifications:
Parameter Specification
Model Double Ended Shear Beam Series
Brand Zemic
Type Double Ended Shear Beam
Capacity 5000 kg (5 Ton)
Material Nickel Alloy Steel
IP Rating IP67
Certifications NTEP, OIML R60 C3
Combined Error ≤0.023%
Creep Error (30 min) ≤0.016%
Output Sensitivity 3.0 ±0.08 mV/V
Temperature Effect ≤0.015%/°C on Zero, ≤0.011%/°C on Output
Operating Temperature -35°C to +65°C
Compensated Range -10°C to +40°C
Maximum Safe Overload 150% FS
Ultimate Safe Overload 300% FS
Input/Output Resistance 700±7Ω / 703±4Ω
Excitation Voltage 5-12V DC (Max 18V DC)
Insulation Resistance ≥5000 MΩ at 50V DC
Load Cell Intervals 3000 (nLC)
Cable Length 6 meters
Primary Application Tank & Vessel Weighing Systems
Recommended Applications:
• Industrial tank and silo weighing
• Chemical process vessel monitoring
• Liquid storage tank measurement
• Hopper and bin weighing systems
• Bulk material storage monitoring
• Process control in manufacturing
• Batching and blending systems
• Commercial weighing applications requiring NTEP certification
